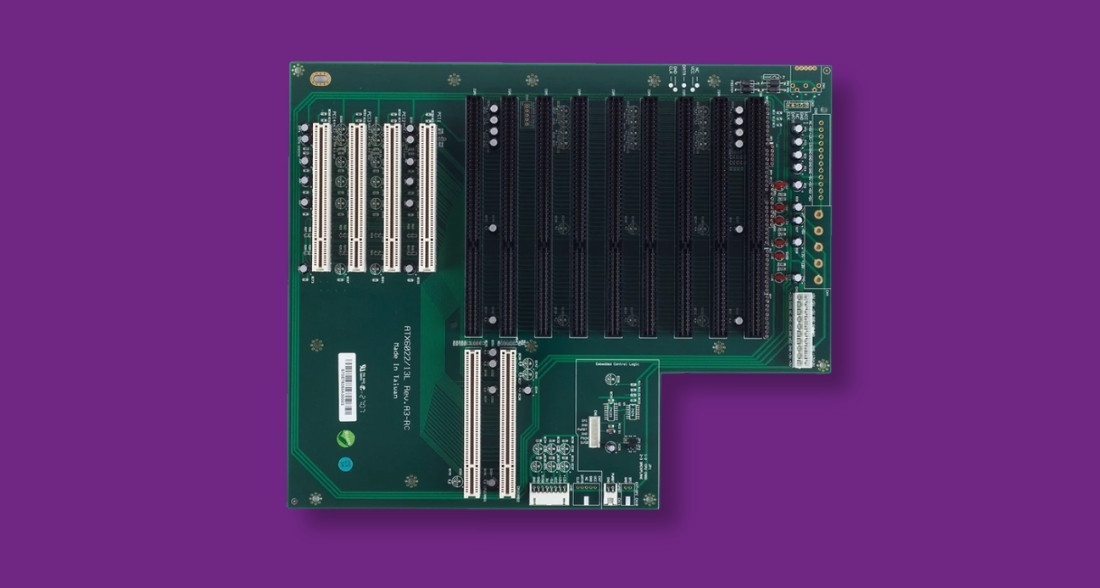

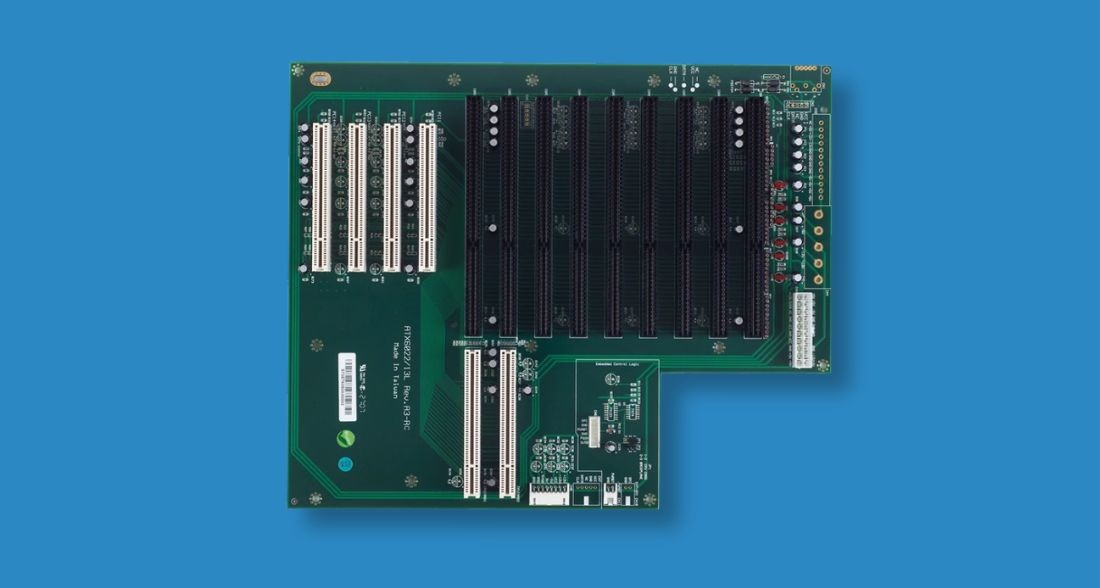

Backplanes for PICMG and Embedded Systems

We offer industrial-grade backplanes for a wide range of PICMG and custom embedded system builds. Whether you need passive or active designs, our backplanes ensure reliable connectivity and long-term availability for embedded computing platforms.

Get in touch with our technical team to help specify the right backplane for your build.

Enquire Now

Showing 6 of 6 Backplanes items

Sort By:

View:

Filter your results

Axiomtek HAB208

8 Slot Half Size PICMG1.3 Backplane: 1 X PICMG1.3, 1 X PCIe[X16], 6 X PCI, ATX Power

Axiomtek HAB206

5 Slot Half Size PICMG1.3 Backplane: 1 X PICMG1.3, 1 X PCIe[X16], 3 X PCI, ATX Power

Axiomtek ATX6022/6VP4

6 Slot Full Size PICMG1.0 Double Sided Backplane: 1x PICMG1.0, 4x PCI, 1 x ISA, ATX Power (2U Chassis Only)

Axiomtek ATX6022/3VP2

2 Slot Full Size PICMG1.0 Double Sided Backplane: 1x PICMG1.0, 2x PCI, ATX Power (1U Chassis Only)

Axiomtek ATX6022/14G

14 Slot Full Size PICMG1.0 Backplane: 2x PICMG1.0, 12x PCI, 1 x ISA, AT/ATX Power

Axiomtek ATX6022/13L

13 Slot Full Size PICMG1.0 Backplane: 2x PICMG1.0, 4x PCI, 7 x ISA, AT/ATX Power

Learn More About Backplanes

Backbone For Modular Systems

Industrial backplanes act as the shared spine of your system, carrying power, signals and data between multiple cards and modules. CPU blades, I/O boards, fieldbus interfaces and specialist cards all plug into a single, managed connection plane, which keeps wiring neat and simplifies fault finding. When requirements change, you can swap or add cards on the backplane rather than redesigning the whole control or rack system.

Built To Withstand Real-World Use

Connectors, traces and materials on industrial backplanes are chosen with long service lives in mind. They are designed to hold firm under vibration, resist contamination from dust and deal with the thermal cycling that comes from 24/7 operation in plant rooms or cabinets. A stable, well engineered backplane helps every card in the system maintain reliable contact, which reduces intermittent faults and unplanned downtime.

Delivered As Part Of A Complete Platform

We can supply backplanes as part of a fully engineered assembly that includes CPU cards, I/O boards, chassis and power supplies. We build up the configuration in our UK facility, apply any required cabling and install your operating system where appropriate, then power and test the system as a whole. The result is a backplane-based platform that arrives ready to slide into your rack or cabinet, with compatibility and integration work already taken care of.
